InArt Brushed Stainless Steel Tile Insert Linear Shower Drain – Odor Trap, 18" x 4"
-
Estimated Delivery:Feb 20 - Feb 24
-
Free Shipping & Returns: On all orders
InArt Brushed Stainless Steel Tile Insert Linear Shower Drain – Odor Trap, 18" x 4"
Upgrade your shower floor with a tile insert linear shower drain designed for a clean, modern look and reliable everyday drainage.
This rectangular linear channel drain is built from brushed AISI 304 stainless steel and installs flush/near-flush in tile or stone. A removable slotted grate and lift-out internal insert make routine cleaning simple, while the integrated odor trap and pest-blocking design help keep your bathroom smelling fresh.
Key Features

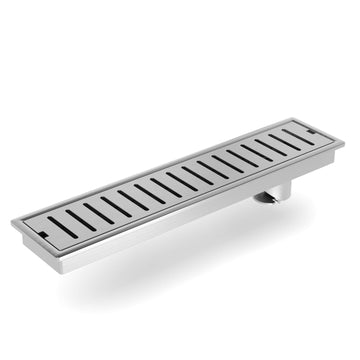

- Linear channel design: Helps move surface water efficiently across the shower floor (18" x 4" cover footprint for common linear layouts).
- Integrated odor trap: Built-in water seal helps reduce sewer gas odors for a more comfortable bathroom environment.

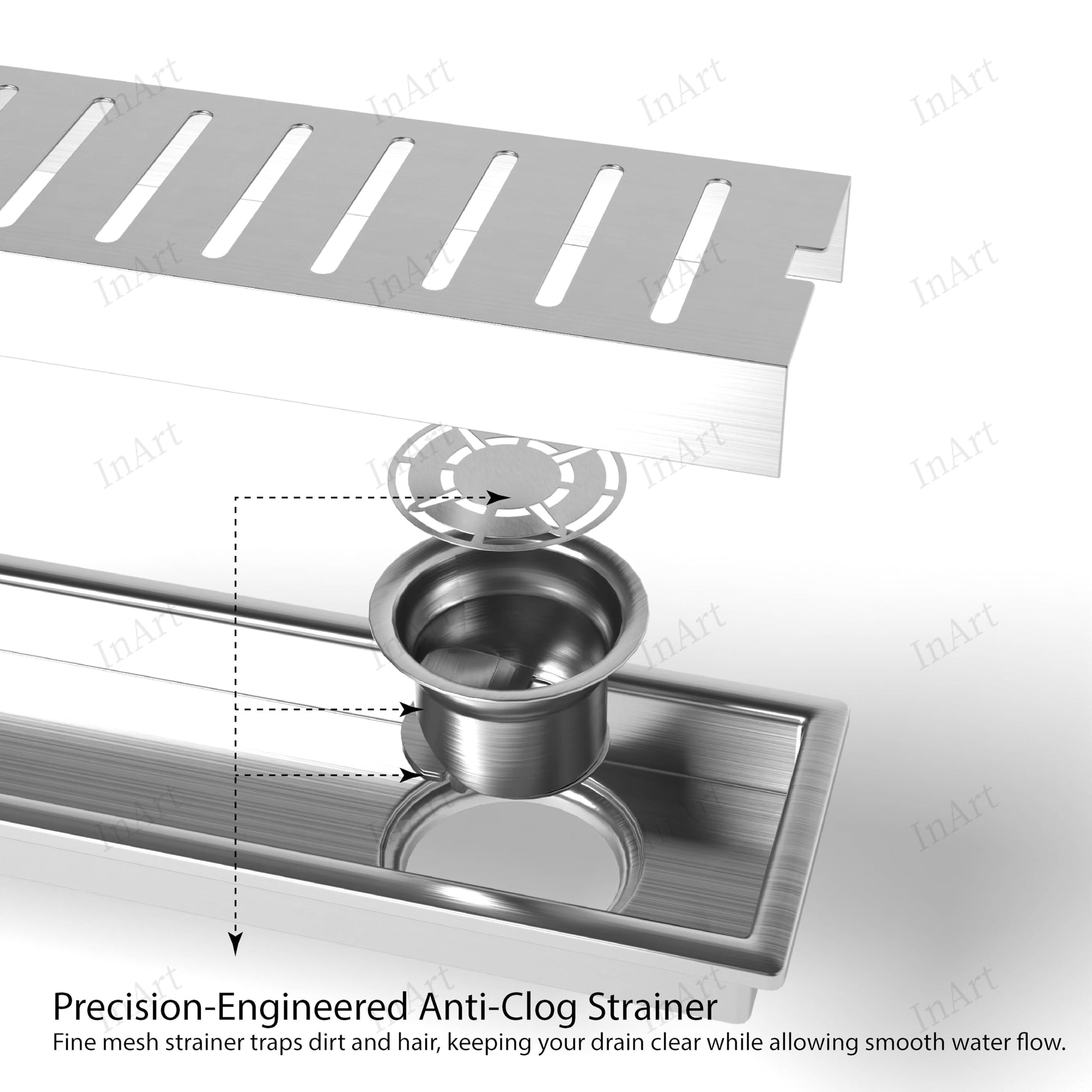

- Pest-blocking insert: Internal insert/strainer assembly helps deter insects from coming up through the drain line.

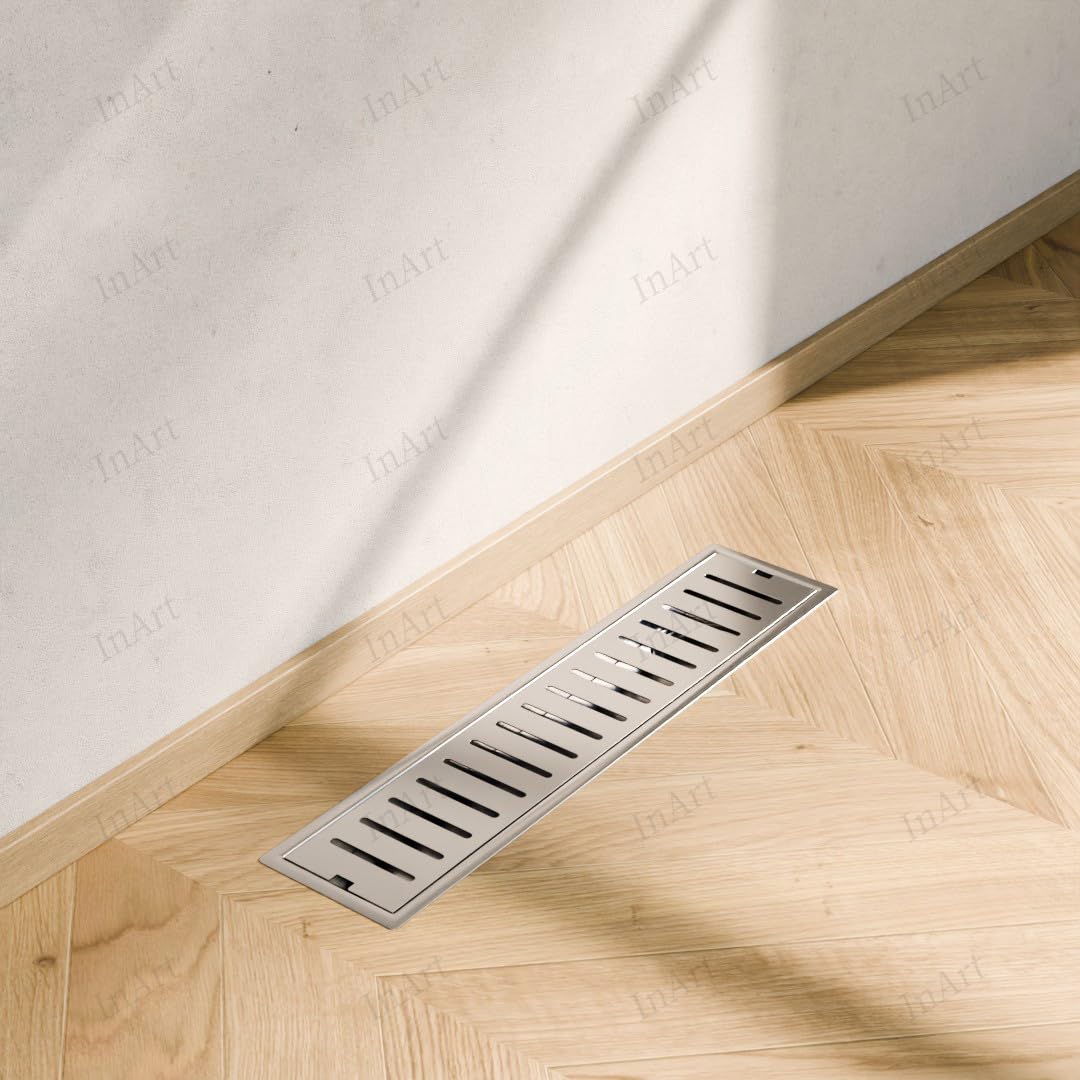

- Removable slotted grate: Lift-off cover provides fast access for maintenance (no special tools required for basic cleaning).
- 304 stainless steel construction: Corrosion-resistant material suited for wet areas like showers and wet rooms.

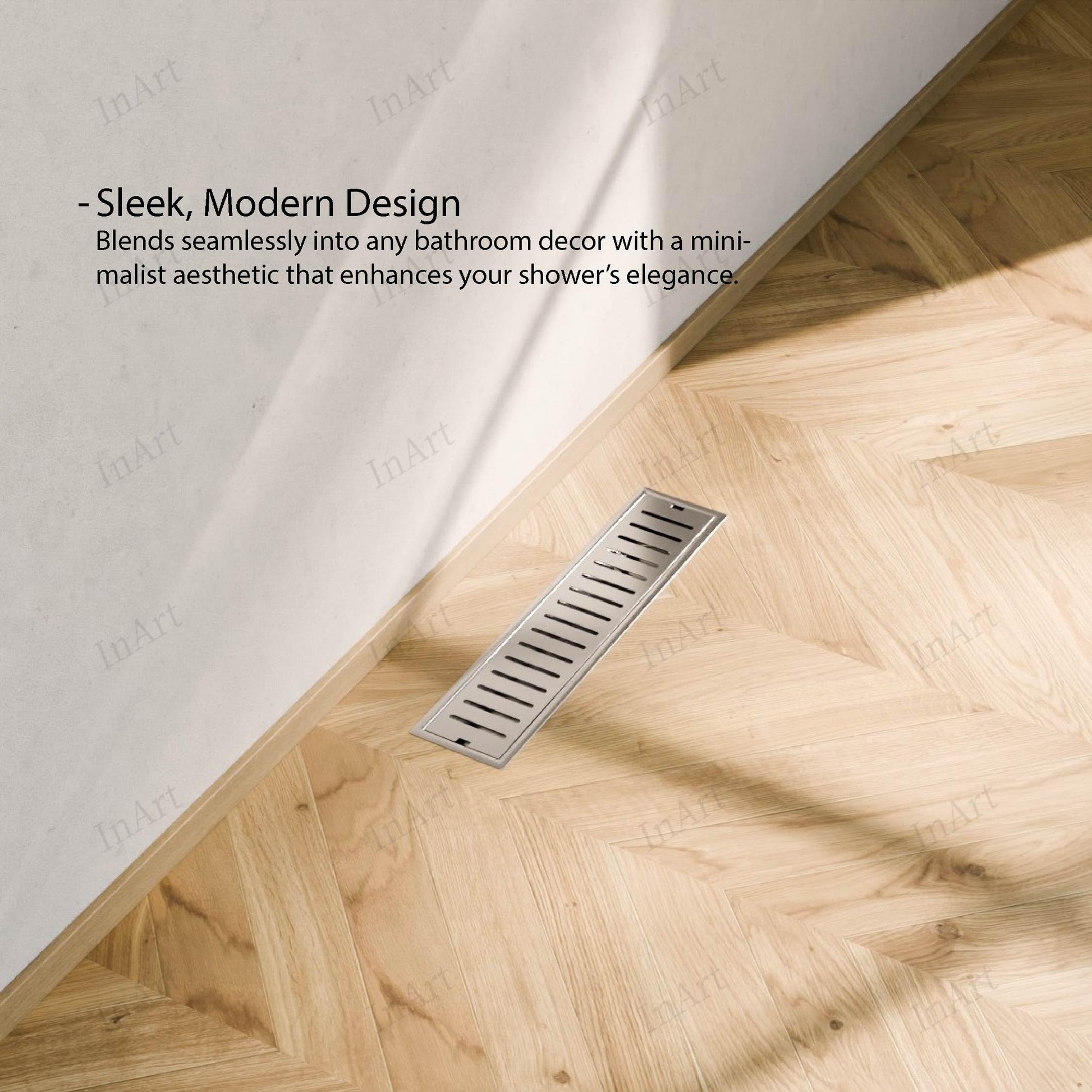

- Brushed stainless finish: Satin/matte look that pairs well with modern tile and hides everyday water spotting better than mirror-polished finishes.
Technical Specifications
| Specification | Details |
|---|---|
| Material | AISI 304 stainless steel |
| Finish | Brushed stainless steel |
| Drain Type | Linear shower/floor drain channel with slotted grate |
| Outlet Size | Not specified (connects via included outlet collar to common waste piping) |
| Cover Size | 18" x 4" x 2.17" (approx. 457 x 102 x 55 mm) |
| Installation Type | Floor-mounted; set into mortar/thinset; grate sits flush/near-flush in perimeter frame; side outlet |
| Compatible Pipe | Common floor drain waste line connection via outlet collar (diameter not specified) |
| Included Components | Linear drain channel body, slotted grate cover, removable internal insert/strainer, outlet collar/fitting |
| Warranty | 1-year limited warranty against manufacturing defects |
What's Included
- Linear drain channel (rectangular)
- Slotted stainless steel grate cover (removable)

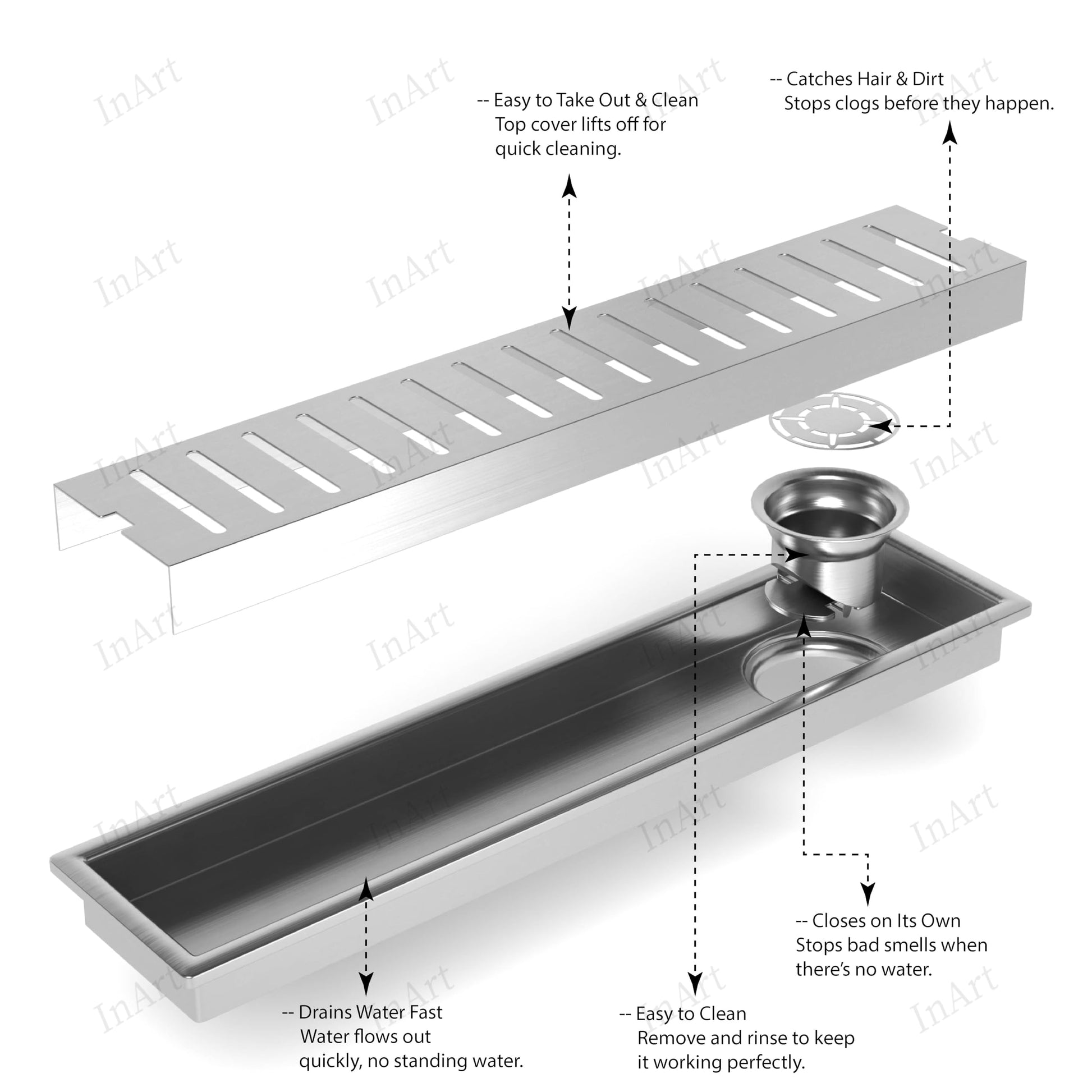

- Removable internal insert/strainer assembly (odor trap + pest blocking)
- Outlet collar/fitting (for connection to waste line)
Installation & Care
- Dry-fit before setting: Confirm placement, slope, and side outlet alignment with your waste line before mortar/thinset installation.
- Set flush with tile: Install the perimeter frame so the grate sits flush/near-flush with finished tile or stone for a clean look.
- Clean in minutes: Lift off the grate and remove the insert to clear debris; rinse and reinstall.
- Use non-abrasive cleaners: Mild soap and water helps preserve the brushed stainless finish; avoid harsh acids and steel wool.
