InArt 12 inch linear shower drain – Odor trap insert, Antique Brass finish

Upgrade your tile shower with a 12 inch linear shower drain that blends classic style with everyday practicality. This floor-mounted brass drain features an exposed decorative rectangular grate in a matte/satin antique brass tone, plus a removable internal trap insert designed to help block odors and pests while still allowing easy access for cleaning.

Key Features

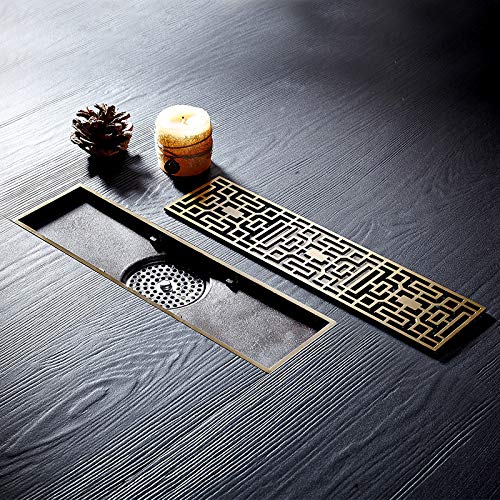

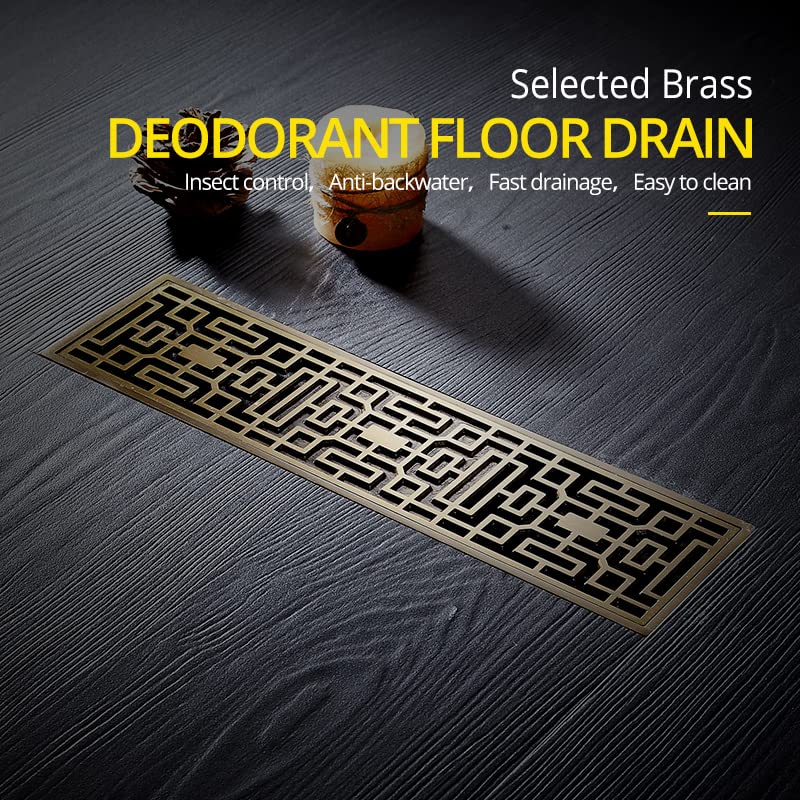

• Decorative rectangular grate: Geometric cutout pattern adds a designer look while letting surface water flow into the channel (12" cover length).

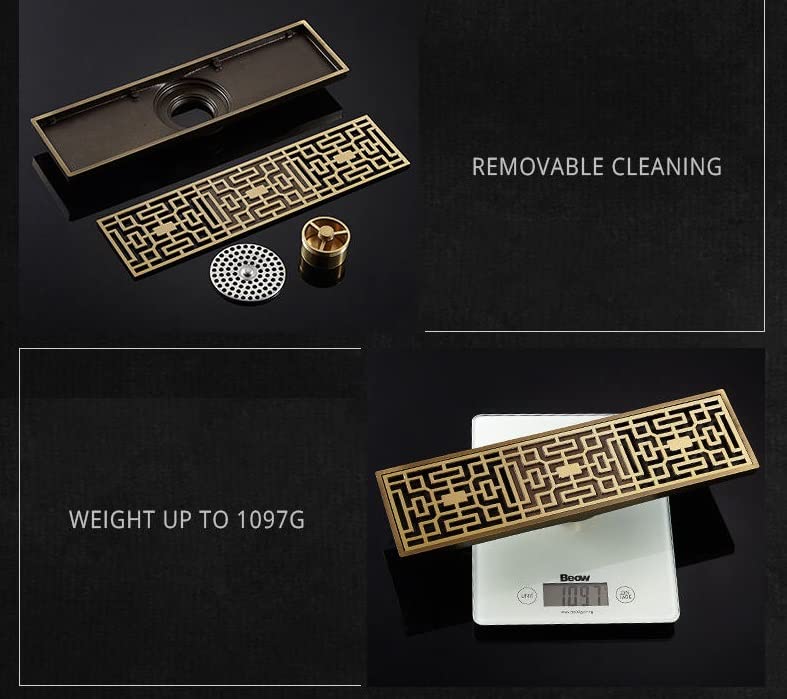

• Removable grate for easy cleaning: Lift-out design provides quick access to the channel and insert for maintenance (no permanent cover).
• Odor-trap style insert: Built-in removable insert helps maintain a water-seal style barrier to reduce sewer gas smells (insert included).
• Pest-blocking design: Trap insert helps deter insects from coming up through the drain line (ideal for showers and wet rooms).
• Solid brass construction: Brass body and grate support long-term use in wet environments (brass material as specified).

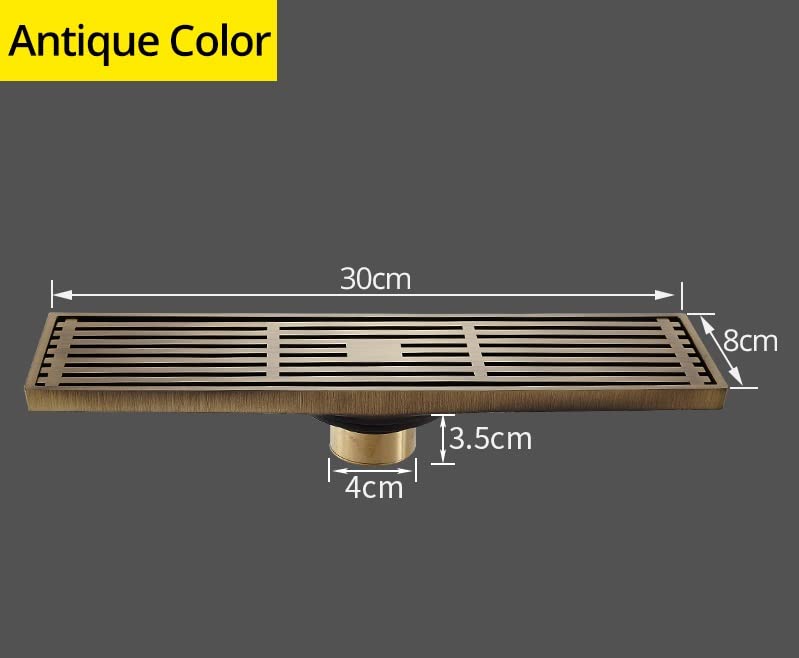

• Center outlet connection: Center vertical outlet is designed to connect to common drain piping below the floor (40 mm / 1.57" outlet).

Technical Specifications

What's Included

• Linear drain body/channel (center outlet)
• Antique brass decorative rectangular grate
• Removable odor-trap/pest-blocking insert

Installation & Care

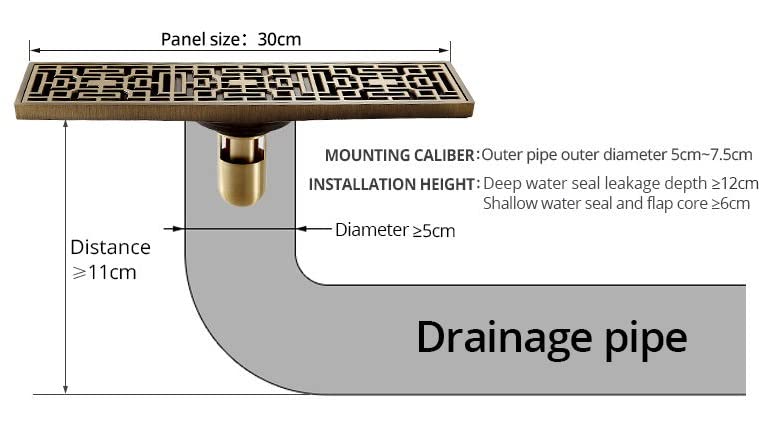

• Confirm rough-in clearance and outlet alignment before setting the drain into the floor.
• Set the drain body recessed to finish flush with your tile surface; maintain proper slope toward the drain.
• Connect the 40 mm (1.57") outlet to your drain line using the appropriate plumbing fitting for PVC/ABS/metal.
• For cleaning, lift the grate, remove the insert, rinse debris, and reinstall.
• Use mild soap and water; avoid abrasive pads or harsh chemicals to help protect the antique brass finish.
